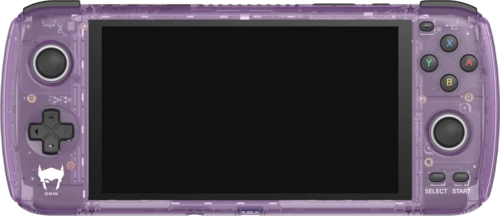

AYN Odin (M2)

codename: odin_m2

Downloads

Get the builds here

Guides

Special boot modes

  • Recovery: With the device powered off, hold Volume Down + Power. Then use the menu to select Recovery Mode.
  • Bootloader/Fastboot/Download: With the device powered off, hold Volume Down + Power.

Known quirks

Find help online

You can find assistance with LineageOS on our subreddit, on our Discord server, or in #LineageOS on Libera.Chat.

Report a bug

If you’d like to report a bug, follow the instructions here.



AYN Odin (M2) (odin_m2)
Released 2022
Specifications
SoC Qualcomm SDM845 Snapdragon 845
RAM 4/8 GB LPDDR4X
CPU Octa-core Kryo 385
4 x 2.8 GHz + 4 x 1.8 GHz
Architecture arm64
GPU Qualcomm Adreno 630
Storage 64/128/256 GB UFS2.1
SD card Up to 2 TB
Screen 5.98 in (151.89 mm)
1920x1080 (368 PPI)
IPS LCD (max. 60 Hz)
Bluetooth 5.0 with A2DP + aptX HD
Wi-Fi 802.11 a/b/g/n/ac
Peripherals
  • 3.5mm jack
  • Accelerometer
  • Dock
  • DP over USB-C
  • Fan
  • Gamepad
  • Gyroscope
  • HDMI
  • Stereo speakers
  • USB OTG
Dimensions 95 mm (3.74 in) (h)
224 mm (8.82 in) (w)
15 mm (0.59 in) (d)
Battery Non-removable 6600 mAh
LineageOS info
Maintainer
  • rtx4d
Current version
  • 22.2 (Android 15)
Kernel version
Supported models
Wiki metadata
