OnePlus 12

codename: waffle

Downloads

Get the builds here

Guides

Special boot modes

  • Bootloader/Fastboot/Download: With the device powered off, hold Volume Up + Volume Down + Power.

Known quirks

Find help online

You can find assistance with LineageOS on our subreddit, on our Discord server, or in #LineageOS on Libera.Chat.

Report a bug

If you’d like to report a bug, follow the instructions here.

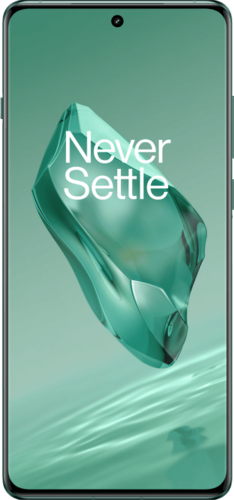

OnePlus 12 (waffle)
Released December 2023
Specifications
SoC Qualcomm SM8650 Snapdragon 8 Gen3
RAM 12/16/24 GB LPDDR5X
CPU Octa-core Kryo
1 x 3.3 GHz + 3 x 3.2 GHz + 2 x 3.0 GHz + 2 x 2.3 GHz
Architecture arm64
GPU Qualcomm Adreno 750
Network
  • 2G GSM
  • 3G UMTS
  • 4G LTE
  • 5G NR
Storage 256/512/1 TB UFS4.0
Screen 6.82 in (173.23 mm)
1440x3216 (516 PPI)
LTPO AMOLED (max. 120 Hz)
Bluetooth 5.4 with A2DP + aptX HD
Wi-Fi 802.11 a/b/g/n/ac/ax/be
Peripherals
  • A-GPS
  • Accelerometer
  • Compass
  • Dual SIM
  • Dual-frequency GNSS
  • eSIM
  • Fingerprint reader
  • BeiDou
  • Galileo
  • GLONASS
  • GPS
  • SBAS
  • QZSS
  • Gyroscope
  • Hall effect sensor
  • IR blaster
  • Light sensor
  • NFC
  • Proximity sensor
  • USB OTG
Cameras 4
  • 50 MP (wide), Dual LED (dual tone) flash
  • 64 MP (periscope telephoto), Dual LED (dual tone) flash
  • 48 MP (ultrawide), Dual LED (dual tone) flash
  • 32 MP, No flash
Dimensions 164.3 mm (6.47 in) (h)
75.8 mm (2.98 in) (w)
9.2 mm (0.36 in) (d)
Battery Non-removable Li-Po 5400 mAh
LineageOS info
Maintainer
  • chandu078
Current version
  • 23.0 (Android 16)
Kernel version
Supported models
Previously supported versions
  • 22.2 (Android 15)
