Samsung Galaxy S20 Ultra (5G)

codename: z3s

Downloads

Get the builds here

Guides

Special boot modes

  • Recovery: Reboot and immediately hold Volume Up + Power while the device is connected to a PC via USB cable.
  • Bootloader/Fastboot/Download: With the device powered off, hold Volume Up + Volume Down and connect USB cable to PC.

Known quirks

Find help online

You can find assistance with LineageOS on our subreddit, on our Discord server, or in #LineageOS on Libera.Chat.

Report a bug

If you’d like to report a bug, follow the instructions here.

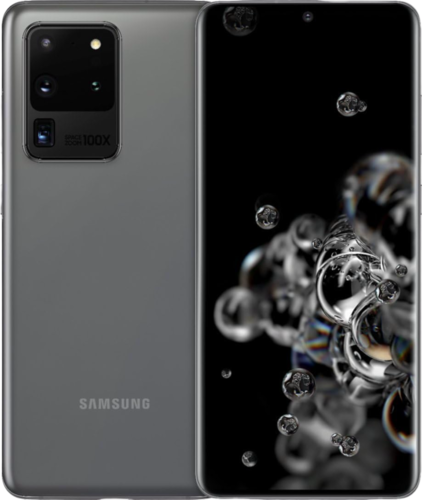

Samsung Galaxy S20 Ultra (5G) (z3s)
Released March 06, 2020
Specifications
SoC Samsung Exynos 990
RAM 12/16 GB
CPU Octa-core Exynos M5 & Cortex-A76 & Cortex-A55
2 x 2.73 GHz + 2x 2.50 + 4 x 2.00 GHz
Architecture arm64
GPU ARM Mali-G77 MP11
Network
  • 2G GSM
  • 3G UMTS
  • 4G LTE
  • 5G NR
Storage 128/256/512 GB
SD card Up to 1 TB
Screen 6.9 in (175.26 mm)
3200x1440 (508 PPI)
Dynamic AMOLED
Bluetooth 5 with A2DP
Wi-Fi 802.11 a/b/g/n/ac/ax
Peripherals
  • A-GPS
  • Accelerometer
  • Barometer
  • Compass
  • DP over USB-C
  • Depth Sensor
  • Dual SIM
  • Dual-frequency GNSS
  • eSIM
  • Fingerprint reader
  • BeiDou
  • Galileo
  • GLONASS
  • GPS
  • SBAS
  • QZSS
  • Gyroscope
  • Hall effect sensor
  • Light sensor
  • NFC
  • Pedometer
  • Proximity sensor
  • Qi wireless charging
  • Qi reverse wireless charging
  • Stereo speakers
  • USB OTG
Cameras 5
  • 12 MP (main), LED flash
  • 64 MP (telephoto), LED flash
  • 12 MP (ultrawide), LED flash
  • 0.3 MP (ToF), No flash
  • 10 MP (front), No flash
Dimensions 166.9 mm (6.57 in) (h)
76 mm (2.99 in) (w)
8.8 mm (0.35 in) (d)
Battery Non-removable Li-Ion 5000 mAh
LineageOS info
Maintainers
  • ExtremeXT
  • fcuzzocrea
Current version
  • 23.0 (Android 16)
Kernel version
Supported models
